CEE 联锁开关插座
CEE 联锁开关插座 紧凑系列 16/32A
138 个型号
代表型号
CEE 联锁开关插座 紧凑系列 16/32A本系列共 138 个型号，此处列出 20 个代表型号。 其余型号按货号可搜，或直接询价。
| 货号 | 名称 | 额定电压 | 额定电流 | 极数 | 钟点位置 | 防护等级 | 接线方式 | 材料 | |
|---|---|---|---|---|---|---|---|---|---|
|

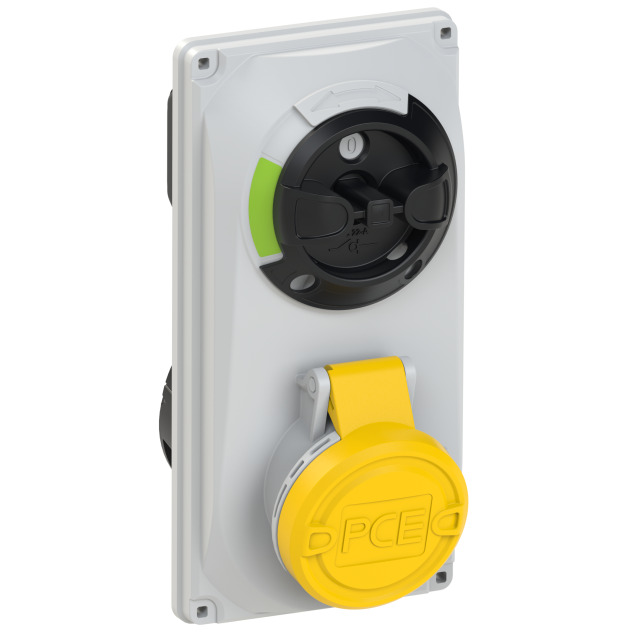

6013-4 | CEE-switched interlocked socket compact 16A 3p 4h IP44/IP54 | 110 V（50+60 Hz）黄 | 16 | 3 | 4 | IP54 | – | – |
|

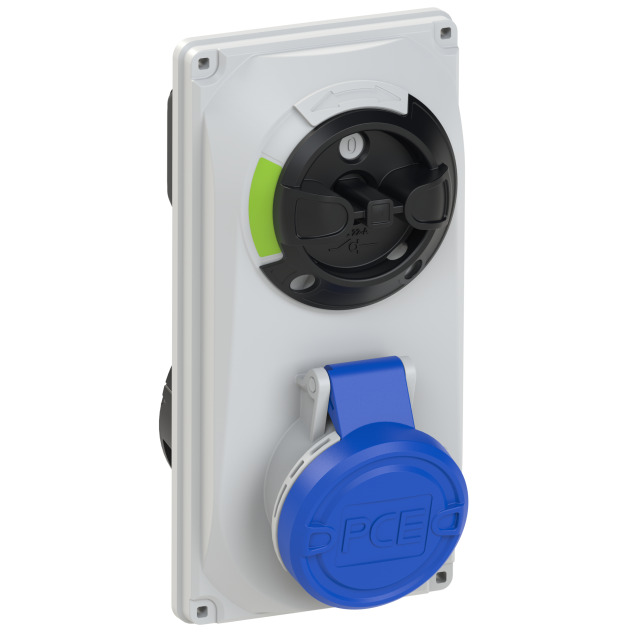

6013-6 | CEE-switched interlocked socket compact 16A 3p 6h IP44/IP54 | 230 V（50+60 Hz）蓝 | 16 | 3 | 6 | IP54 | – | – |
|
6013-6xs | CEE-switched interlocked socket compact 16A 3p 6h IP44/IP54 | – | – | – | – | – | – | – |
|
|
6013-9 | CEE-switched interlocked socket compact 16A 3p 9h IP44/IP54 | 380–415 V（50+60 Hz）红 | 16 | 3 | 9 | IP54 | – | – |
|
6014-4 | CEE-switched interlocked socket compact 16A 4p 4h IP44/IP54 | 110 V（50+60 Hz）黄 | 16 | 4 | 4 | IP54 | – | – |
|

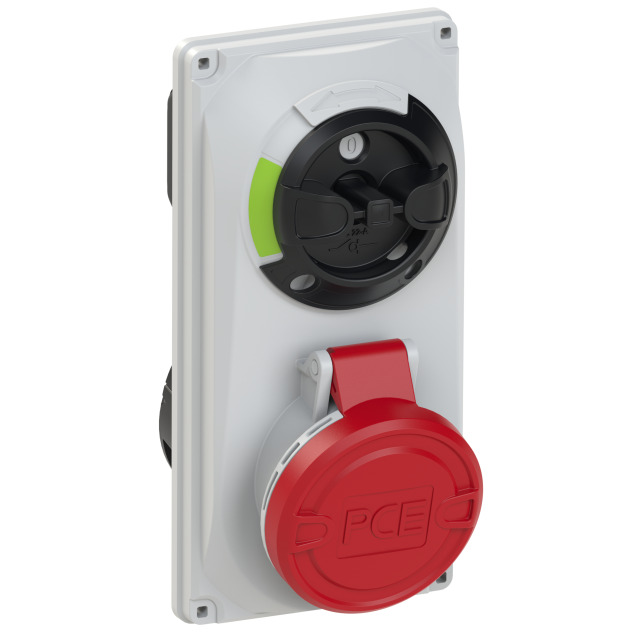

6014-6 | CEE-switched interlocked socket compact 16A 4p 6h IP44/IP54 | 400 V（50+60 Hz）红 | 16 | 4 | 6 | IP54 | – | – |
|

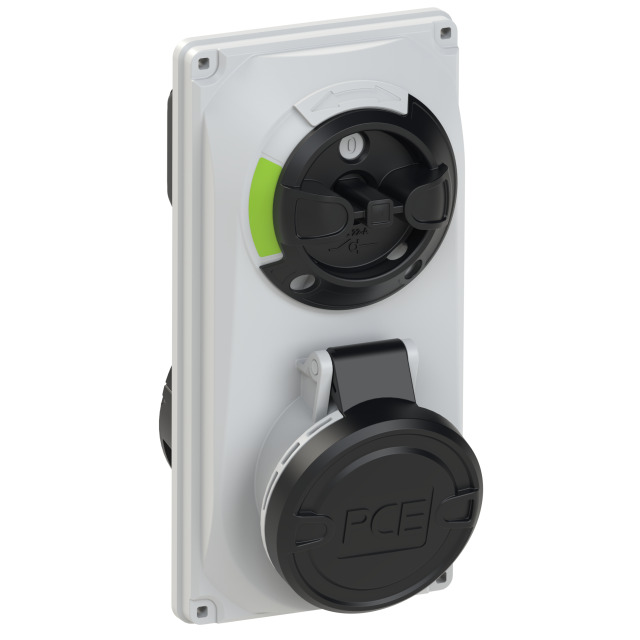

6014-7 | CEE-switched interlocked socket compact 16A 4p 7h IP44/IP54 | 500 V（50+60 Hz）黑 | 16 | 4 | 7 | IP54 | – | – |
|

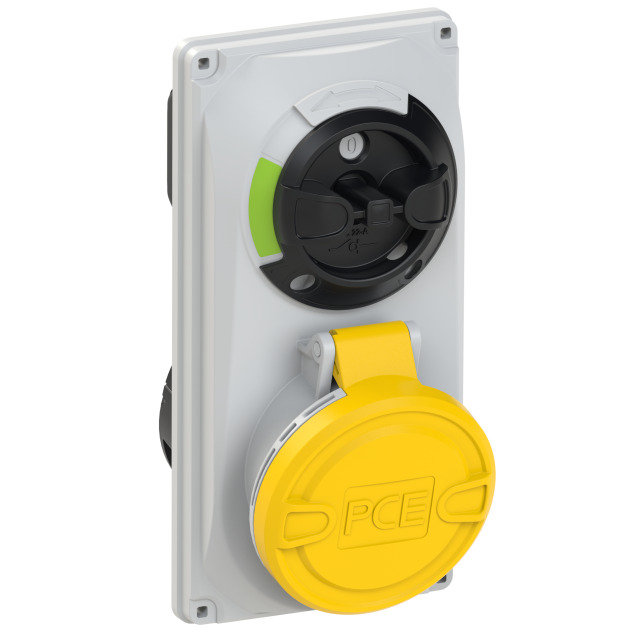

6015-4 | CEE-switched interlocked socket compact 16A 5p 4h IP44/IP54 | 110 V（50+60 Hz）黄 | 16 | 5 | 4 | IP54 | – | – |
|

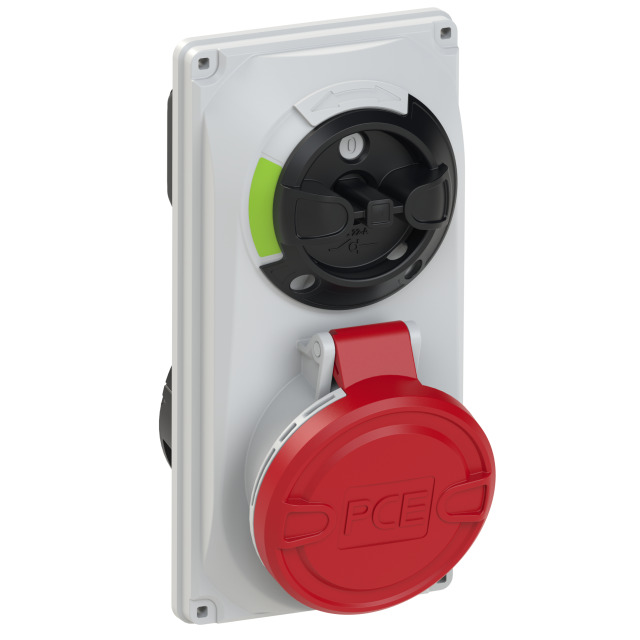

6015-6 | CEE-switched interlocked socket compact 16A 5p 6h IP44/IP54 | 400 V（50+60 Hz）红 | 16 | 5 | 6 | IP54 | – | – |
|

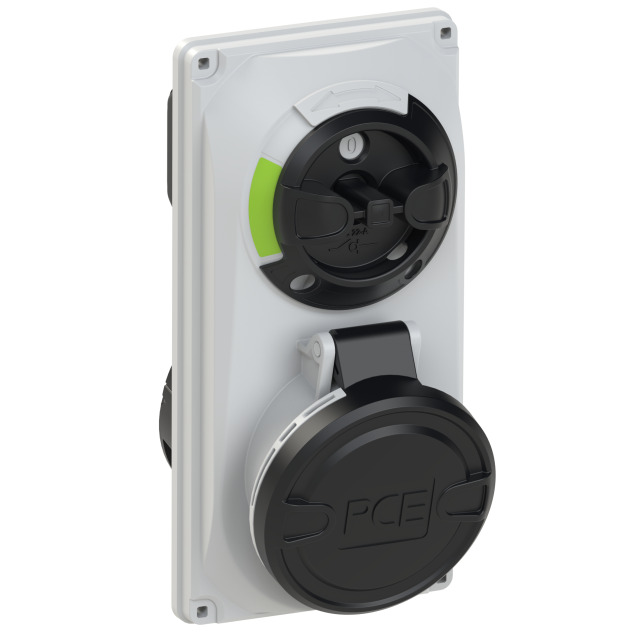

6015-7 | CEE-switched interlocked socket compact 16A 5p 7h IP44/IP54 | 500 V（50+60 Hz）黑 | 16 | 5 | 7 | IP54 | – | – |
|
6015-9 | CEE-switched interlocked socket compact 16A 5p 9h IP44/IP54 | 200–250 V（50+60 Hz）蓝 | 16 | 5 | 9 | IP54 | – | – |
|

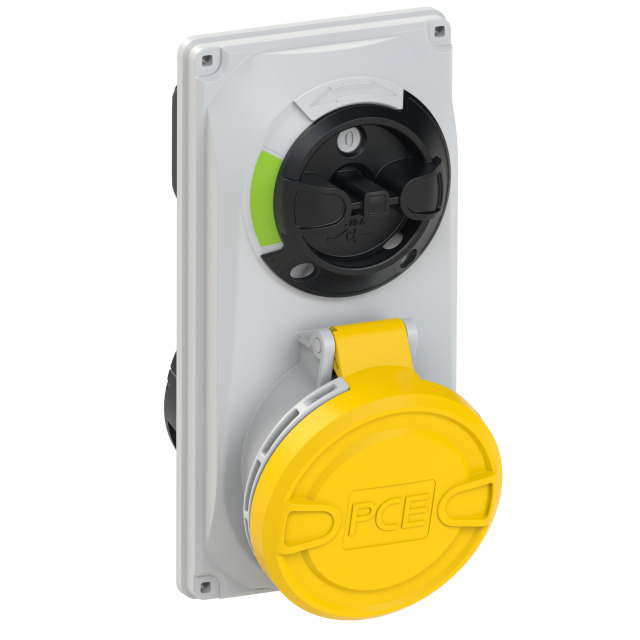

6023-4 | CEE-switched interlocked socket compact 32A 3p 4h IP44/IP54 | 110 V（50+60 Hz）黄 | 32 | 3 | 4 | IP54 | – | – |
|

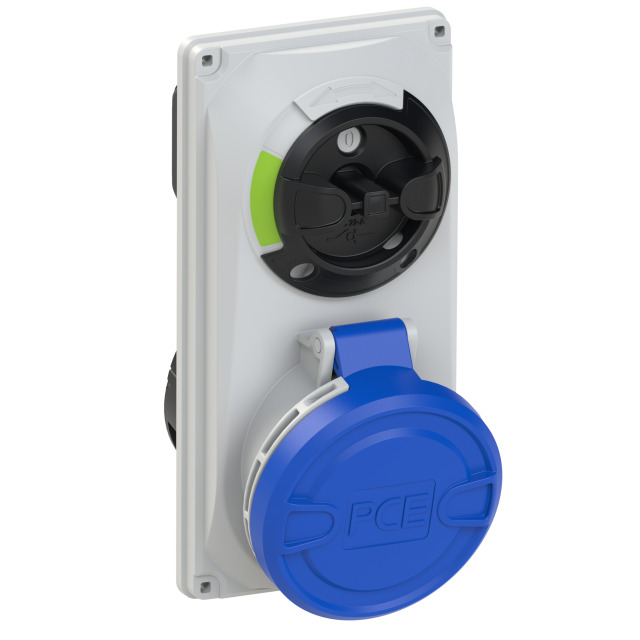

6023-6 | CEE-switched interlocked socket compact 32A 3p 6h IP44/IP54 | 230 V（50+60 Hz）蓝 | 32 | 3 | 6 | IP54 | – | – |
|

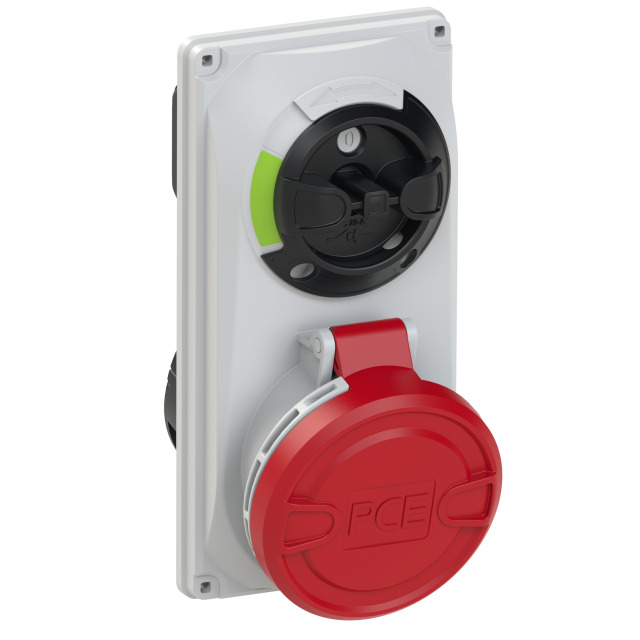

6023-9 | CEE-switched interlocked socket compact 32A 3p 9h IP44/IP54 | 380–415 V（50+60 Hz）红 | 32 | 3 | 9 | IP54 | – | – |
|
|
6024-6 | CEE-switched interlocked socket compact 32A 4p 6h IP44/IP54 | 400 V（50+60 Hz）红 | 32 | 4 | 6 | IP54 | – | – |
|

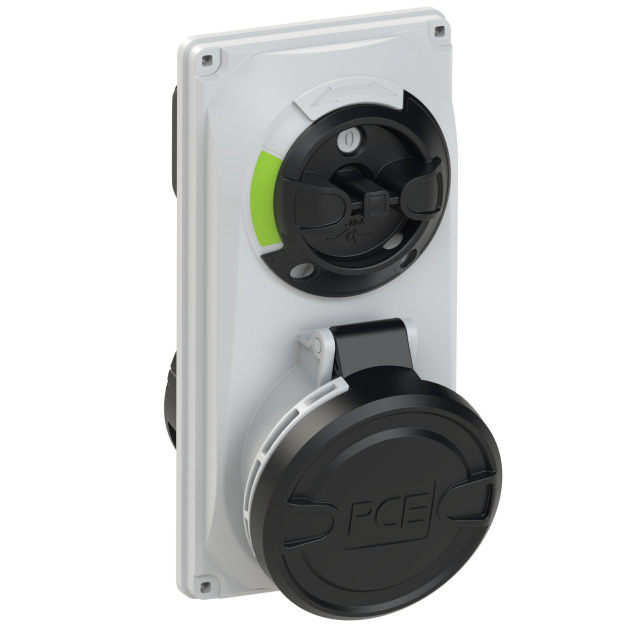

6024-7 | CEE-switched interlocked socket compact 32A 4p 7h IP44/IP54 | 500 V（50+60 Hz）黑 | 32 | 4 | 7 | IP54 | – | – |
|
|
6024-9 | CEE-switched interlocked socket compact 32A 4p 9h IP44/IP54 | 200–250 V（50+60 Hz）蓝 | 32 | 4 | 9 | IP54 | – | – |
|

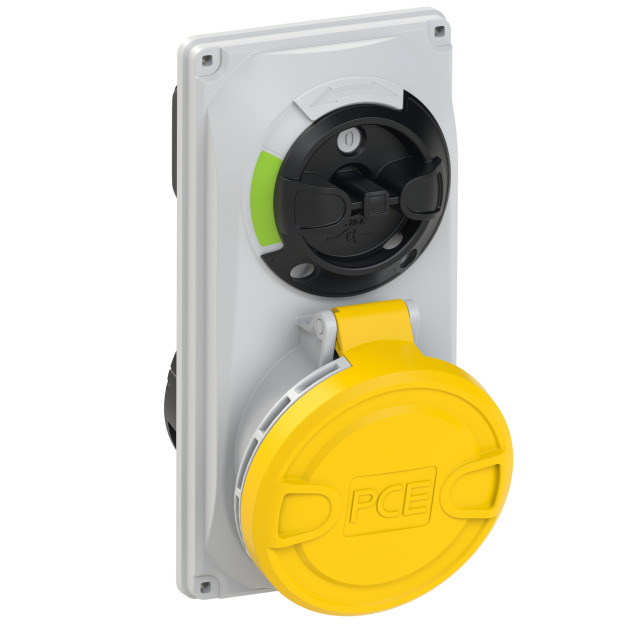

6025-4 | CEE-switched interlocked socket compact 32A 5p 4h IP44/IP54 | 110 V（50+60 Hz）黄 | 32 | 5 | 4 | IP54 | – | – |
|

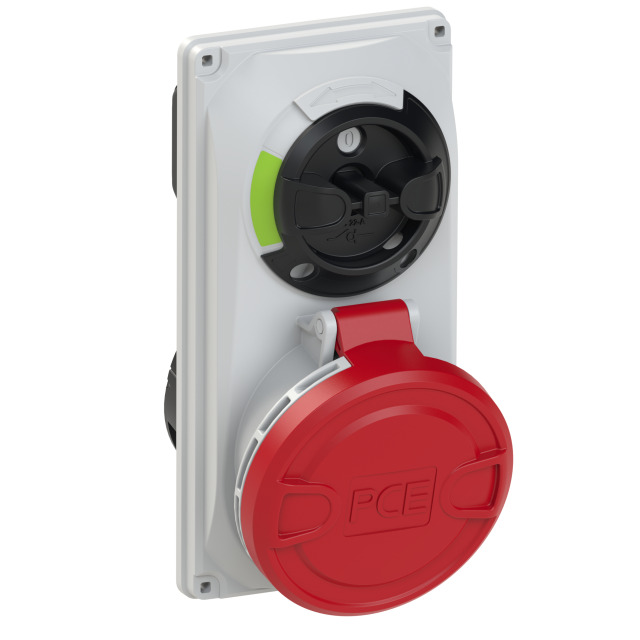

6025-6 | CEE-switched interlocked socket compact 32A 5p 6h IP44/IP54 | 400 V（50+60 Hz）红 | 32 | 5 | 6 | IP54 | – | – |
|

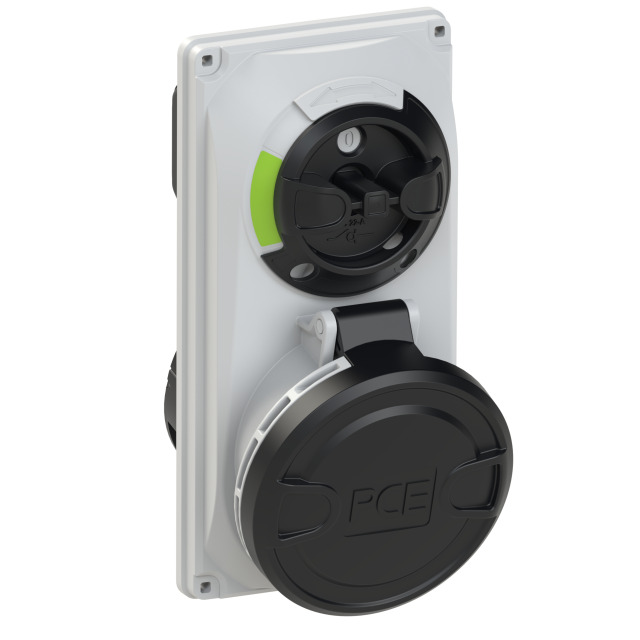

6025-7 | CEE-switched interlocked socket compact 32A 5p 7h IP44/IP54 | 500 V（50+60 Hz）黑 | 32 | 5 | 7 | IP54 | – | – |
