Cee Flanged Plugs
CEE-flanged plugs with phase inverter 16/32A
20 products
Representative models
CEE-flanged plugs with phase inverter 16/32A| Article no. | Name | Voltage | Rated current | Poles | Clock hour | Protection | Connection system | Material | |
|---|---|---|---|---|---|---|---|---|---|
|
|
77814-6 | CEE-phase inverter flanged plug angled 16A 4p 6h IP44 | 400 V (50+60 Hz) red | 16 | 4 | 6 | IP44 | Screwed terminal | Plastic |
|

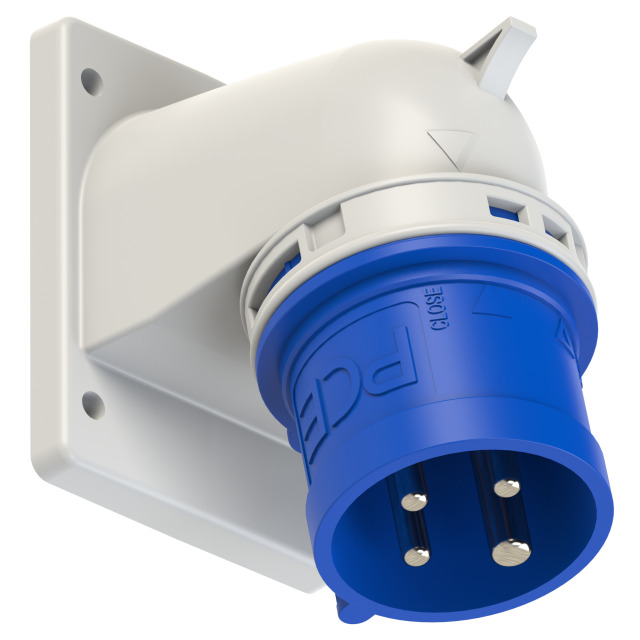

77814-9 | CEE-phase inverter flanged plug angled 16A 4p 9h IP44 | 200-250 V (50+60 Hz) blue | 16 | 4 | 9 | IP44 | Screwed terminal | Plastic |
|

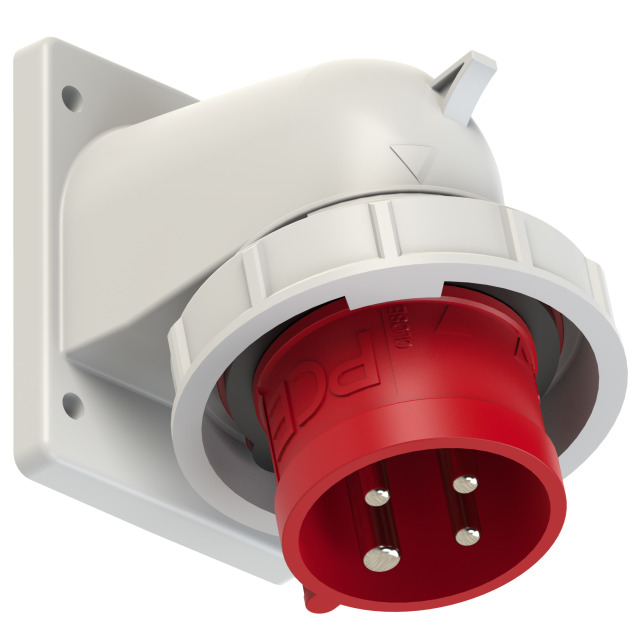

778142-6 | CEE-phase inverter flanged plug angled 16A 4p 6h IP67 | 400 V (50+60 Hz) red | 16 | 4 | 6 | IP67 | Screwed terminal | Plastic |
|

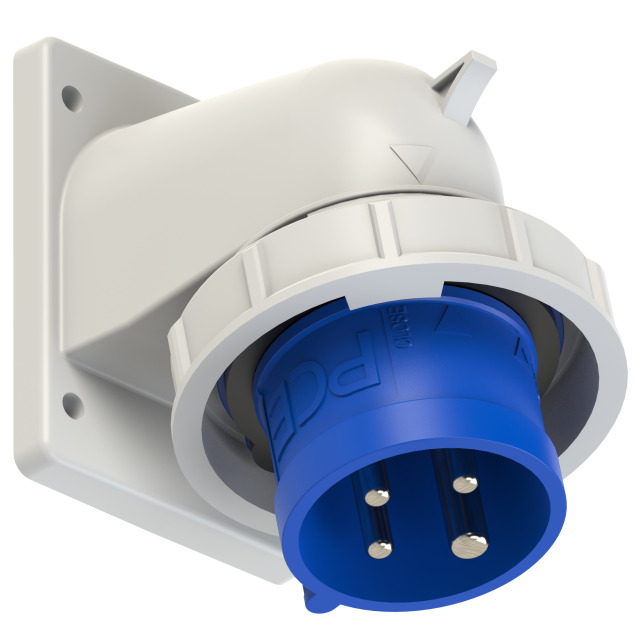

778142-9 | CEE-phase inverter flanged plug angled 16A 4p 9h IP67 | 200-250 V (50+60 Hz) blue | 16 | 4 | 9 | IP67 | Screwed terminal | Plastic |
|

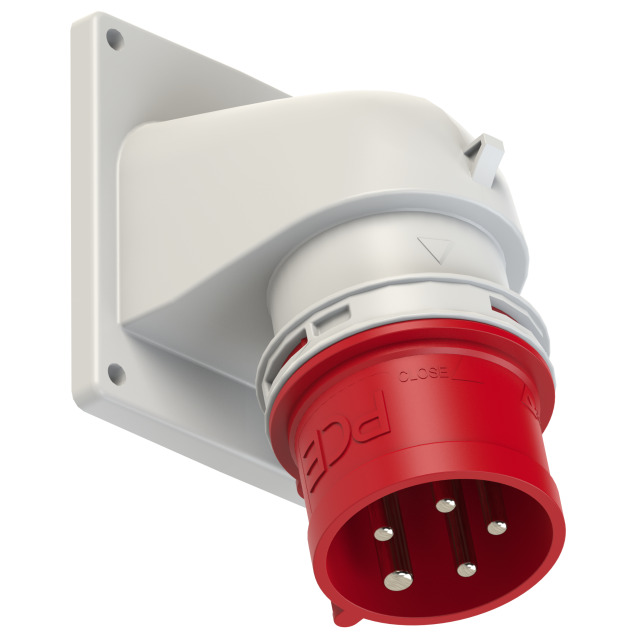

77815-6 | CEE-phase inverter flanged plug angled 16A 5p 6h IP44 | 400 V (50+60 Hz) red | 16 | 5 | 6 | IP44 | Screwed terminal | Plastic |
|

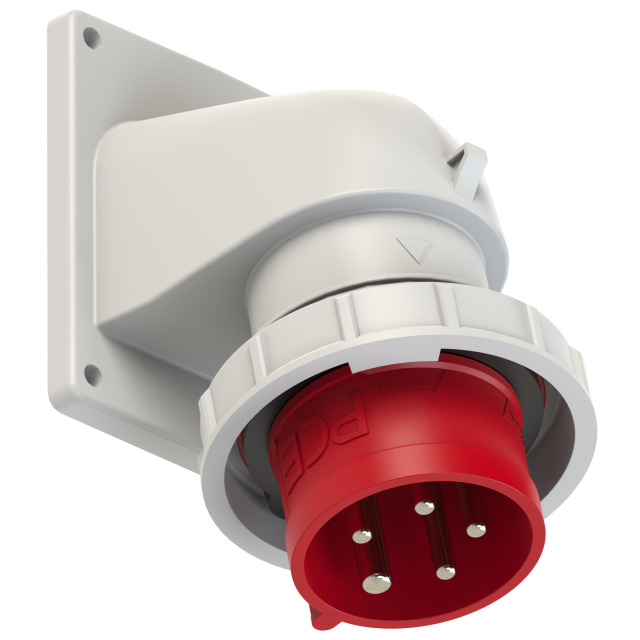

778152-6 | CEE-phase inverter flanged plug angled 16A 5p 6h IP67 | 400 V (50+60 Hz) red | 16 | 5 | 6 | IP67 | Screwed terminal | Plastic |
|
|
77824-6 | CEE-phase inverter flanged plug angled 32A 4p 6h IP44 | 400 V (50+60 Hz) red | 32 | 4 | 6 | IP44 | Screwed terminal | Plastic |
|
|
77824-9 | CEE-phase inverter flanged plug angled 32A 4p 9h IP44 | 200-250 V (50+60 Hz) blue | 32 | 4 | 9 | IP44 | Screwed terminal | Plastic |
|
|
778242-6 | CEE-phase inverter flanged plug angled 32A 4p 6h IP67 | 400 V (50+60 Hz) red | 32 | 4 | 6 | IP67 | Screwed terminal | Plastic |
|
|
778242-9 | CEE-phase inverter flanged plug angled 32A 4p 9h IP67 | 200-250 V (50+60 Hz) blue | 32 | 4 | 9 | IP67 | Screwed terminal | Plastic |
|
|
77825-6 | CEE-phase inverter flanged plug angled 32A 5p 6h IP44 | 400 V (50+60 Hz) red | 32 | 5 | 6 | IP44 | Screwed terminal | Plastic |
|
|
778252-6 | CEE-phase inverter flanged plug angled 32A 5p 6h IP67 | 400 V (50+60 Hz) red | 32 | 5 | 6 | IP67 | Screwed terminal | Plastic |
|

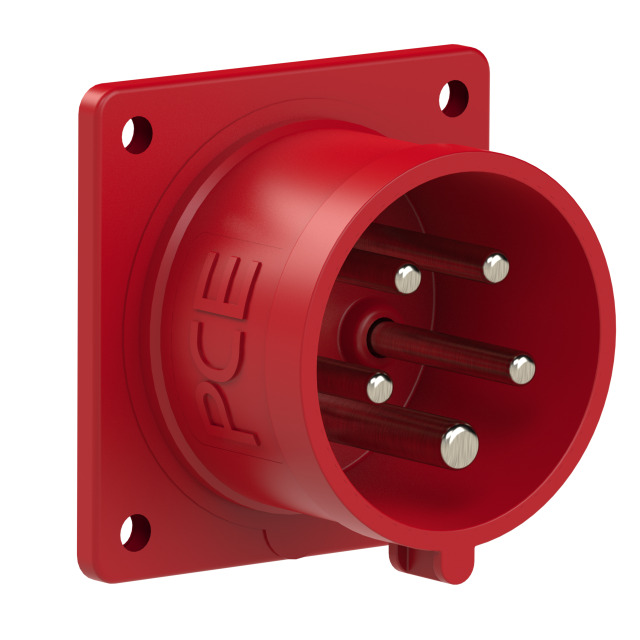

8615-6 | CEE-phase inverter flanged plug straight 16A 5p 6h IP44 | 400 V (50+60 Hz) red | 16 | 5 | 6 | IP44 | Screwed terminal | Plastic |
|

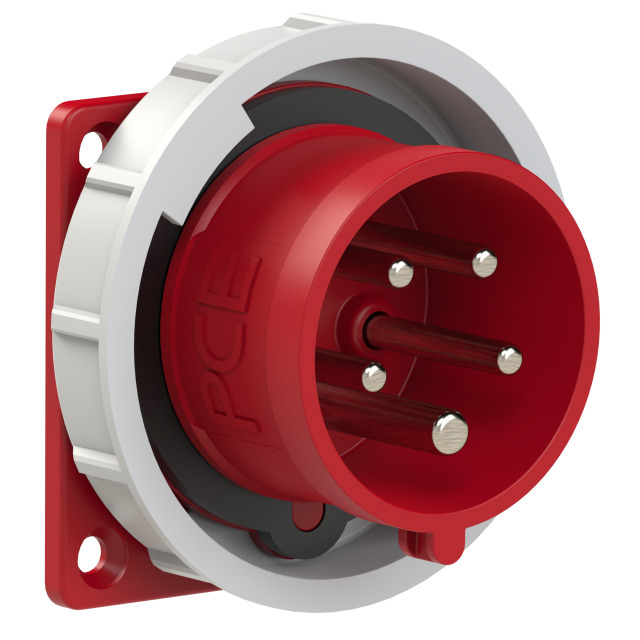

86152-6 | CEE-phase inverter flanged plug straight 16A 5p 6h IP67 | 400 V (50+60 Hz) red | 16 | 5 | 6 | IP67 | Screwed terminal | Plastic |
|
8624-6 | CEE-phase inverter flanged plug straight 32A 4p 6h IP44 | 400 V (50+60 Hz) red | 32 | 4 | 6 | IP44 | Screwed terminal | Plastic |
|

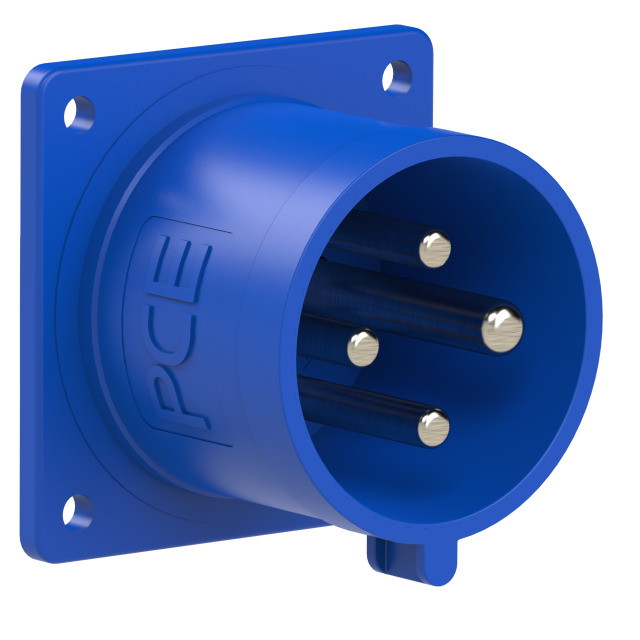

8624-9 | CEE-phase inverter flanged plug straight 32A 4p 9h IP44 | 200-250 V (50+60 Hz) blue | 32 | 4 | 9 | IP44 | Screwed terminal | Plastic |
|

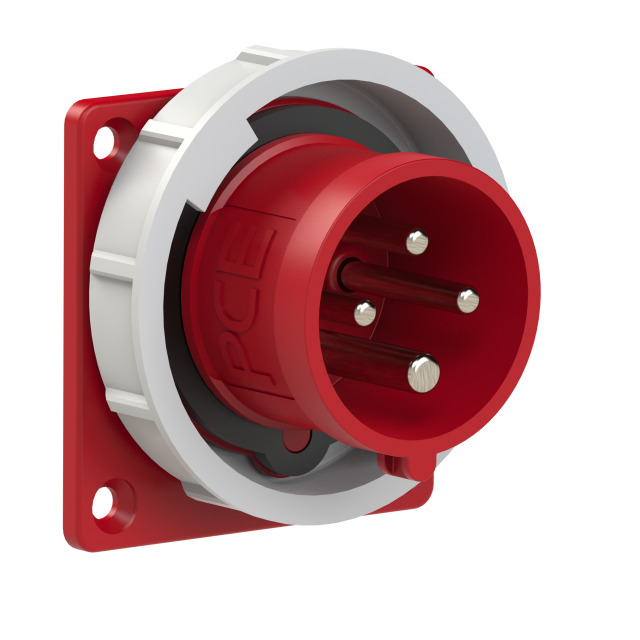

86242-6 | CEE-phase inverter flanged plug straight 32A 4p 6h IP67 | 400 V (50+60 Hz) red | 32 | 4 | 6 | IP67 | Screwed terminal | Plastic |
|

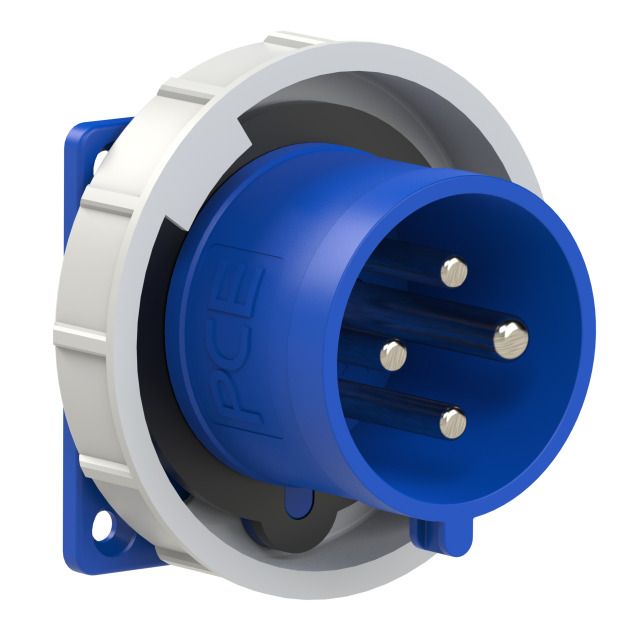

86242-9 | CEE-phase inverter flanged plug straight 32A 4p 9h IP67 | 200-250 V (50+60 Hz) blue | 32 | 4 | 9 | IP67 | Screwed terminal | Plastic |
|

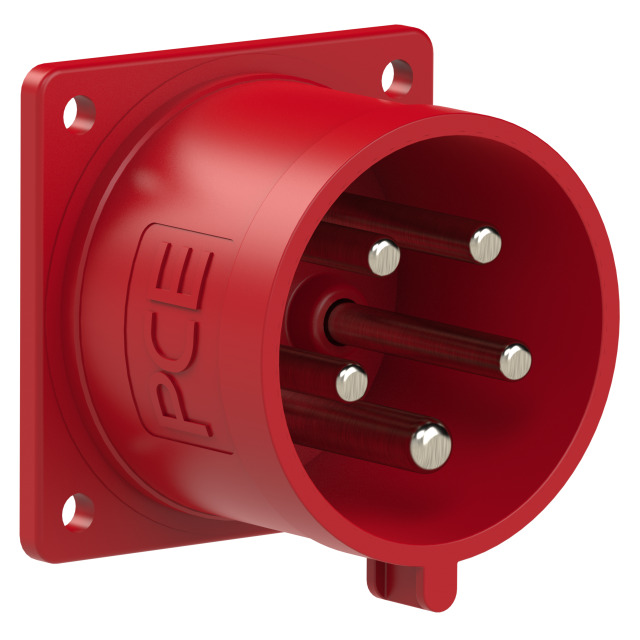

8625-6 | CEE-phase inverter flanged plug straight 32A 5p 6h IP44 | 400 V (50+60 Hz) red | 32 | 5 | 6 | IP44 | Screwed terminal | Plastic |
|

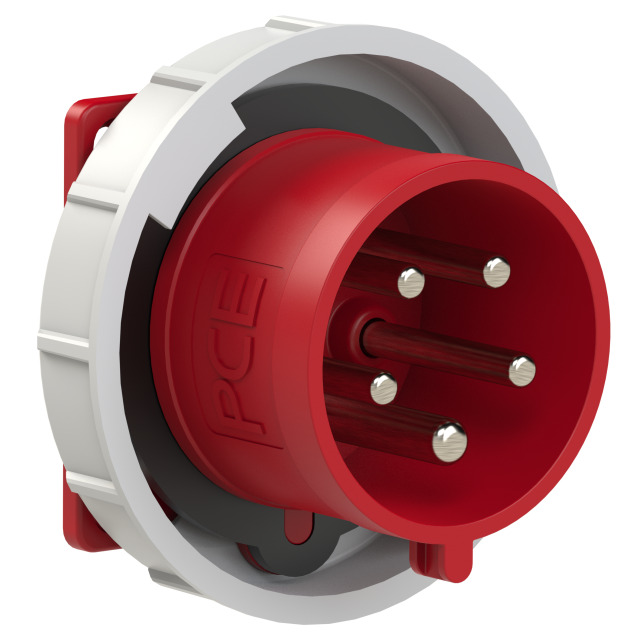

86252-6 | CEE-phase inverter flanged plug straight 32A 5p 6h IP67 | 400 V (50+60 Hz) red | 32 | 5 | 6 | IP67 | Screwed terminal | Plastic |
